Beretta Model PM12S2 |
|
PM
12 S2.
The Beretta PM 12 S2 sub machine gun is a 9 mm x 19 NATO blowback
firearm which has both semi automatic and full automatic fire
capabilities.
|
Telescopic
Bolt.

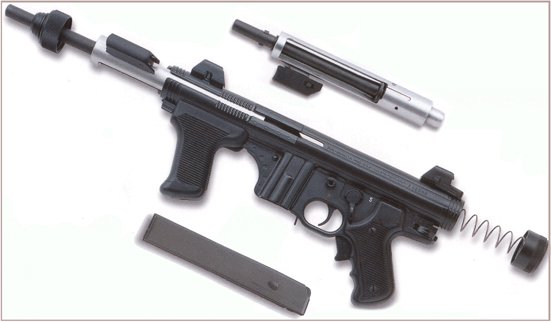

The telescopic bolt, which encloses the barrel (200 mm Long) for
three quarters of its length, makes the firearm very compact and
reduces to a minimum the upward movement of the muzzle during
firing. The front grip, the magazine housing, the trigger guard
with firing device and manual and automatic safety devices are
all in a one piece assembly and are integral part of the receiver.
This gives solidity to the firearm and ensures good performance
over the years. Longitudinal grooves along the whole length of
the receiver allow excellent sliding of the bolt even in the extremely
adverse conditions (fall of the gun in mud and exposure to dust
and sand).
The
PM12 S2's sturdiness and its total reliability in different latitudes
can easily be seen in the general structure of the gun and in
the dimensions of its component parts, as also in the extreme
simplicity of design and assembly. The Beretta PM 12 S2 is a NATO
qualified sub machine gun for ammunition interchange ability test.
|
|
|
|
|
|
Manual
and Automatic Safety, Cocking Handle Safety.
The selector device allows for an easy selection of three positions,
namely: "manual safety" (S), "single shot”
(1), "full automatic fire" (R), without any need for
removing the hand from the grip. The automatic safety, which locks
the trigger and the bolt in its closed position, safeguards from
accidental firing if the gun is dropped and precludes firing if
the grip is not firmly held.
The safety on the cocking handle blocks the bolt in case this
is not fully retracted, thus preventing an accidental discharge.
The fixed firing pin can strike the primer only when the cartridge
is fully chambered, avoiding accidental firing, since the gun
fires from the "open bolt' position. |
|
Cocking
Handle Safety ...............Firing
Mode Selector/Safety ..................Diopter
Rear Sight.... |

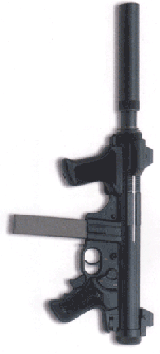

PM
12 S2 with Silencer
|
Precise,
Safe, Reliable.
The front sight, adjustable in elevation and windage,
and rear sight with 100m or 200m flip aperture allow accurate aimed
fire and are well protected from impacts. The sturdy folding butt
can be safety locked in the "open" position. When folded,
the butt runs along the side of the receiver in the most practical
position. The exterior surfaces of the firearm, finished (after
phosphate treatment) with epoxy resin coating, guarantee the best
possible protection against corrosion and maximum resistance to
wear and abrasions. |
|
PM12S2 |
|
Caliber |
9mm x 19 NATO |
Operation |
Blowback; lt fires from the open bolt position |
Firing mode |
Single shot (1) or fully automatic fire (R) |
Magazine |
32 rounds |
Safeties |
Manual which blocks the trigger through the automatic safety; |
|
automatic on the rear grip which immobilizes the trigger
and |
|
blocks the bolt in a closed position; on the cocking handie |
|
locking the bolt in case of non-sufficient bolt retracting |
Overall length |
657 mm |
Length, wIth folded butt |
418 mm |
Barrel lenght |
200 mm |
Sight radius |
285 mm |
Height (without magazine) |
180 mm |
Height (with magazine) |
242 mm |
Weight (with empty magazine) approx. |
3.480 kg |
Welght (with full magazine) approx. |
3.820 kg |
Barrel, Rifling and Pitch |
Inside chromium-plated. R.H. 6 grooves, |
|
pitch 250 mm |
Rear-sight |
2 positions flip aperture (up to 100 m and up to 200 m) |
Front-sight |
Adjustable for elevation and windage |
Cyclic rate of fire approx. |
550 rounds per minute |
|
